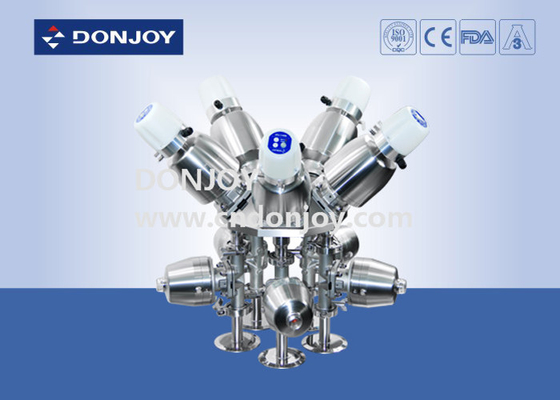

Multiport Sanitary Diaphragm Valve M65A port valve SS316 can with control Head

Multiport Sanitary Diaphragm Valve , Diaphragm Control Valve ss316

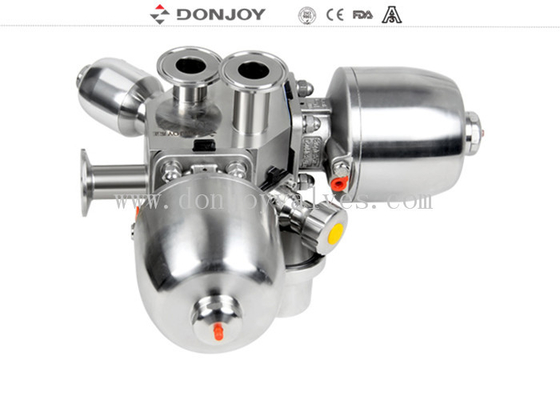

M-65A: Five valve, Six Port
 Specifications


Multiport Diaphragm valve is the mose progressive design for meeting the ultral cleaning in pharmacy industry. Traditional welding manifold valve is complicat and with long assembly time. Large space ooccupied and expensive cost on inspection

 Description
 Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner / Process Controller(IL-TOP)
2.      Diaphragm valve with Control Unit(C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
10.  Body: Casting / Forging

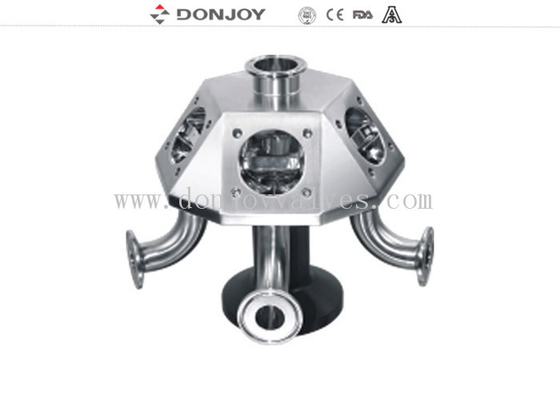

Valve Body:
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Istallation suggestion
According to different size, start design can almost be seven valve, besides star design can consist of two opposed multiport valve, they are connected b public pipe

Multiport Diaphragm valve Key Features
Facing the customer's special needs of design
The structure is compact, small installtion space
Different size can be conbination
Optimization of the self emptying function.
Zero dead angle
REduce the conact area, prevent medium retention and cross infection
Save join, pipe welding.
Reduce the need for valve various qualification certification
According customer's reequirement to choose actuator and connections.

More information, please contact us directly.
