نام تجاری:	DONJOY
مقدار تولیدی:	Negotiation
قیمت:	$8 per piece
جزئیات بسته بندی:	Carton, Wooden Case
شرایط پرداخت:	T/T,L/C, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

CHINA

گواهی:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1/2"-3"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread,pin connection

Polished:

Mirror, Matt

Material:

Stainless steel

Supply Ability:

3000 pcs per month

برجسته کردن:

spray balls stainless steel ,stainless steel spray ball

stainless steel spray ball

توضیح محصول

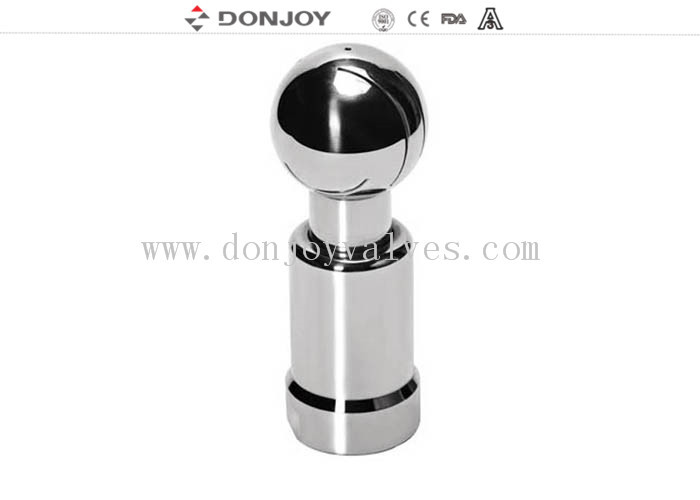

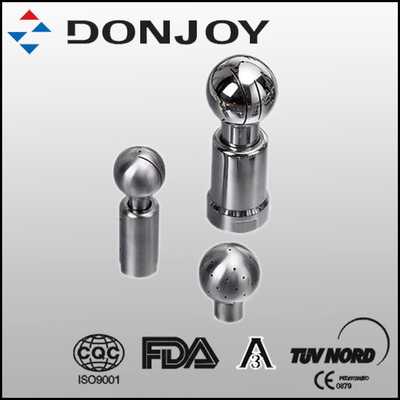

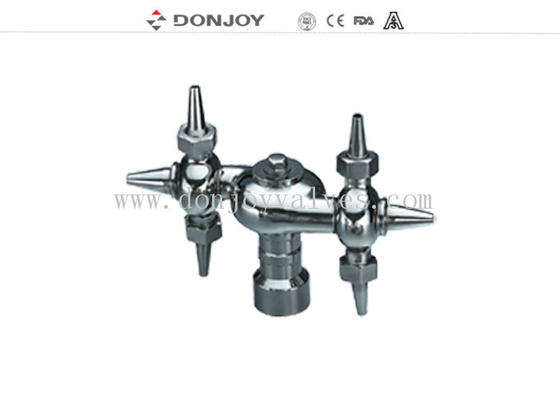

SS316L 2" BSP Thread Elliptial Rotating Cip Tanks Spray Ball ,Sanitary Cleaner

sanitary Rotary cleaning ball. spray ball
material: SS304,316,316L
size: DN25-DN100, 1"-4"
Coneection way: thread,welded,Clamp(quick end)

Surface finishing: Mirro polish ,Matt polish

Specification

Product Name:	SS316L, 2" BSP Thread Elliptial ball cleaner, Spary tank cleaning Ball
Material:	SUS304/316L;PTFE
Flow:	4-45m³/h
Inlet Pressure:	4-10 bar
Suggest Pressure:	6 bar
Availably size:	1"-2.5"
Connection way:	thread BSP,clamp Pin, Welded
Max temperature:	95°C
Max environment temperature:	140°C
Application Scope:	Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage
Typical application:	process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding
Advantages:	Self-cleaning; low liquid consumption; heath design
Typical cleaning methods:	fixed installation CIP system
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Drawing

SS316L 2" BSP Thread Elliptial Rotating Cip Tanks Spray Ball ,Sanitary Cleaner 0

SS316L 2" BSP Thread Elliptial Rotating Cip Tanks Spray Ball ,Sanitary Cleaner 1

Typical Application

1. Fixedinstallaiton CIP System

2. Process Containers and reator

3. Store tank

4. Transport tank equipment

5. Fermentation

6. Yeast Breeding

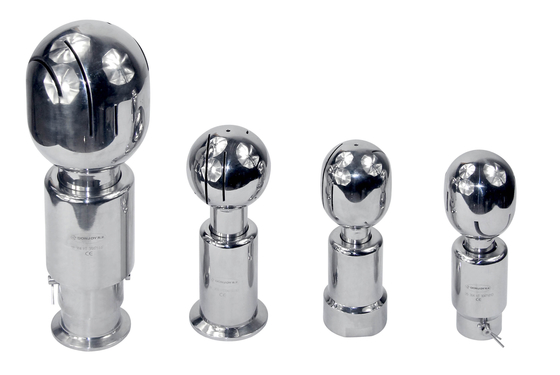

Rotary Cleaning Ball

Q	G	Ht	Hs	2Bar
Q	G	Ht	Hs	Spray Radius(M)	Cleaning Radius(m)	Flow Rat(m³/H)
28	3/8" BSP	87.5	80.5	2.5	1.1	2.5
	1/2" BSP	90.5	83.5	2.8	1.2	2.8
	3/4" BSP	94.5	87.5	2.8	1.3	3.0
45	1/2" BSP	122.5	110.5	3.0	2.2	6
	3/4" BSP	126.5	114.5	3.4	2.5	6.5
	1" BSP	130.5	118.5	3.5	2.6	7
65	1" BSP	163.5	147.5	4.0	3.0	12
	1.25" BSP	165.5	149.5	4.2	3.1	15
	1.5" BSP	168.5	152.5	4.5	3.2	16
75	1.25" BSP	191.5	171.5	6.0	4.1	18
	1.5" BSP	194.5	174.5	6.5	4.2	22
	2" BSP	202.5	182.5	7.0	4.4	25
