SS316L DONJOY Rotary Tank Spray Ball With Pin Connection

نام تجاری:	DONJOY
شماره مدل:	DJ-QX-XZ
مقدار تولیدی:	Negotiation
جزئیات بسته بندی:	Carton, Wooden Case
شرایط پرداخت:	T/T,L/C, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

CHINA

گواهی:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1/2"-2.5"

Stanadard:

DIN,3A,SMS,ISO

Connection:

Welded, Clamped,Thread,pin connection

Polished:

Mirror, Matt

Material:

Stainless steel

Supply Ability:

3000 pcs per month

برجسته کردن:

SS316L Tank Spray Ball,DONJOY Tank Spray Ball,Rotary Tank Spray Ball

DONJOY Tank Spray Ball

Rotary Tank Spray Ball

توضیح محصول

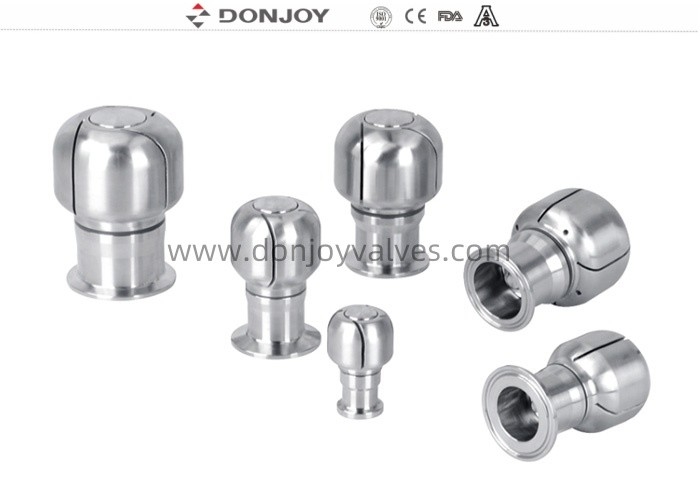

SS316L DONJOY Rotary tank Spray ball with pin connection

Advantage

lower noise: about 40dB
smaller flow consumption: save 20%
longer service life: about 3,000 hours
shorter cleaning time
better cleaning effect

Application

◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball:Spherical is oval and round,the injector jet is flat groove type

Technical specifications

Cleaning Radius:Maximum 4 m(4bar)
Cleaning angle:180°；270°；360°
Sphere options: oval ball
Size:35mm, 50mm, 65mm, 75mm
Material:316L

Rotary Spray Head Dimension and Connection

Male threaded, Female thread connection
bolted connection
weld connection
tri-clamp connection

Rotary Spray Ball Typical Application

Fixed installation CIP system
Process containers and reactor
Store tank
Transport tank
Fermentation
Yeast Breading

Option cleaning angle

SS316L DONJOY Rotary Tank Spray Ball With Pin Connection 1

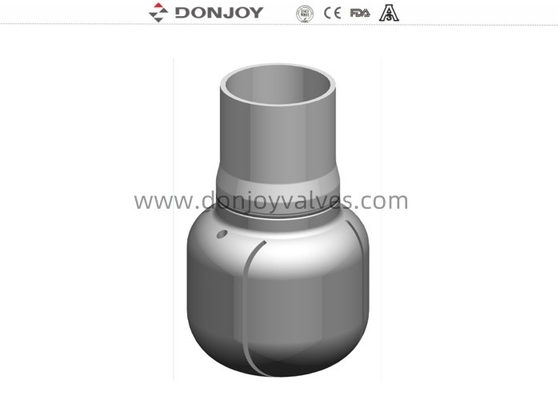

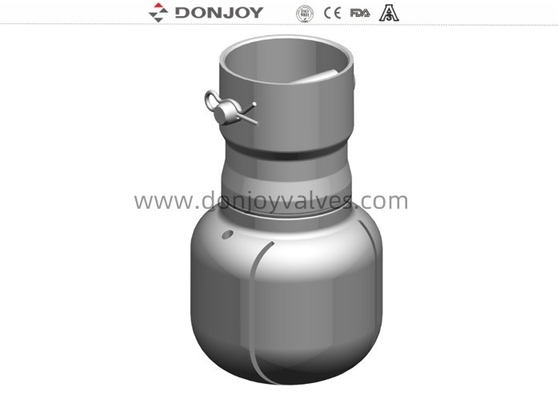

Drawing

SS316L DONJOY Rotary Tank Spray Ball With Pin Connection 2

SS316L DONJOY Rotary Tank Spray Ball With Pin Connection 3

Donjoy tanks cleaning ball,
