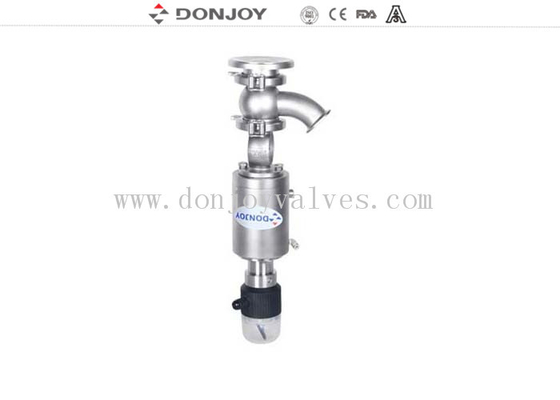

1 Inch Pneumatic Tank Bottom Stainless Steel Valve With Position feedback unit F-TOP

1 Inch Pneumatic Tank Bottom Stainless Steel Valves With Position feedback unit F-TOP

Description
1. Size: DN25-DN100 1”-4”
2. Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3. Max. Working pressure: 10bar / 145PSI
4. Compressed air pressure: 6-8bar / 87-116PSI
5. Air supply connections: G1/8” (BSP)

Specification

Options
1. Manual
2. Steam sterilized(if shaft sterilisation is required).
3. C-top control unit
4. Internal surface finish: Ra ≤0.5μm
5. Gaskets: NBR or FPM
6. Connections: DIN, Clamp, SMS, RJT, IDF...Flange
7. Double and single acting actuator
8. Air / Spring, Air / Air

Applications
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage,pharmaceutical and fine chemical industries.

Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp

Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.

Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.

Delivery time
Usually within 20days after T/T down payments.

Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.

Product display

Tag : Flush tank bottom valve,  Food grade Valve,  Donjoy Valve
