نام تجاری:	DONJOY
شماره مدل:	NO.VDF301Q1
مقدار تولیدی:	Negotiation
قیمت:	قابل مذاکره
جزئیات بسته بندی:	carton box
شرایط پرداخت:	T/T, LC, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

China

گواهی:

CE,3A,FDA

Product Name:

Mixproof butterfly valve of type A

Materials:

304 / 316L

Size:

2'' - 4'', DN50 - DN100

Operation:

Pneumatic

Connection:

welding

Gasket:

EPDM + PTFE

Structure:

With Actuator

Feature:

Leakage is visiable

Guarantee:

High purity and safe

Supply Ability:

20 sets 30 working days

برجسته کردن:

stainless butterfly valves,pneumatic butterfly valve

pneumatic butterfly valve

توضیح محصول

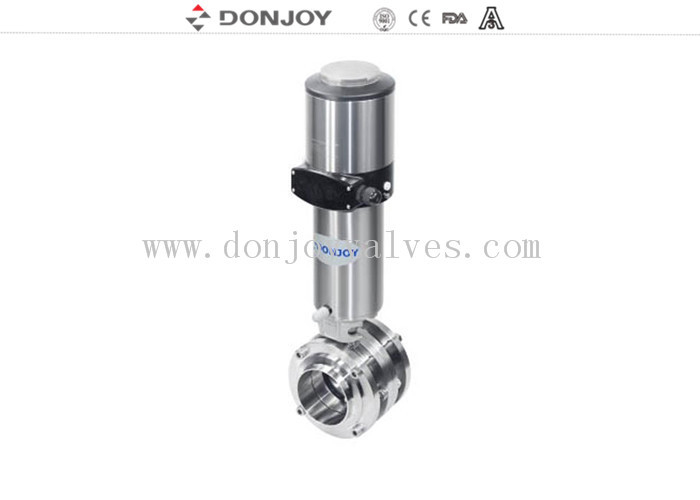

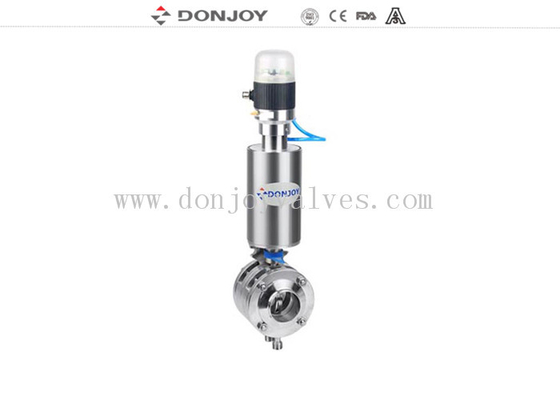

double seat butterfly valves sanitary pneumatic mixproof with positioner

Specifications

Product Name:	double seat butterfly valves sanitary pneumatic mixproof with positioner
Valve Body Material:	SS304 / 316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max. working Pressure:	10Bar
Max. working temperature:	130 degree C
Available size:	2''-4'', DN50-DN100
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual, Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Using:	Separating material in the storage tank
Medium:	Especially suitable for liquid and gaseous medium without suspended matter/particles

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Drawing

Tag: Donjoy mixproof butterfly valves, Double seat butterfly valve , beverage butterfly valve
