Name: 1/2" - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished
Brand: DONJOY TECHNOLOGY CO., LTD
SKU: 40016
Price: 99.60 USD
Availability: InStock

نام تجاری:	DONJOY
شماره مدل:	40016
مقدار تولیدی:	Negotiation
جزئیات بسته بندی:	Carton, Wooden Case
شرایط پرداخت:	T/T,L/C, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

CHINA

گواهی:

CE/FDA/ISO/3A

Brand:

DONJOY

SIZE:

1/2"-6"

Model:

40016

Thickness:

1.2mm, 1.5mm,1.65mm,2mm,2.1mm

Staandard:

3A,ISO, SMS,BPE, ISO1127,DIN, ASME/ANSIB16.9

Materials:

SS304/1.4301, SS316L/1.4404

برجسته کردن:

Heavy Duty Clamp,tri clover clamp

tri clover clamp

توضیح محصول

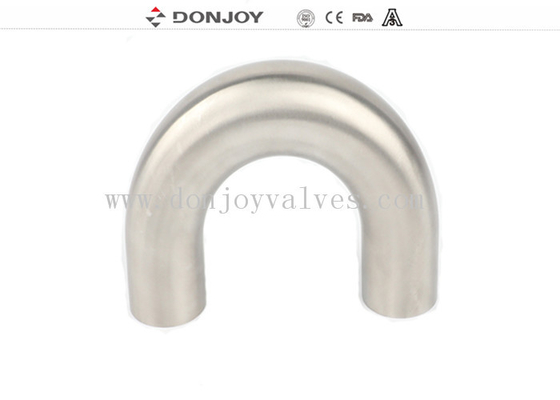

1/2” - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished

Quick Detail

Stainless steel 180 Degree Elbow(Bend)

Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE

Specification

Product Name:	1/2”-6” 3A sanitary 180 degree welded Bend Matt Polished for food grade
Material:	AISI304, AISI316L
Size:	1/2"-"6"
Finish:	mirror polish, stain finish,no polish
Connection:	weld ends
Standard:	Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Competitive Advantage

“DONJOY is the only company that pass nine series of products by American 3A certification

organization in Asian sanitary pumps and valves field.”

Application

Applied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat

processing, preserved fruit, cosmetic, biology, chemical industry, pharmacy and so on.

Question And Answer

Q1. Where is your factory?

Our factory located in Wenzhou,China.

Q2. What material do you have?

SS304//SS316

Q3. Can you provide sample for us?

Yes, free sample is available.Welcome your contact.

Q4. How about your delivery time ?

For small order within 7 days. For the mass order depends on your order.

product drawing

1/2" - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished 0

Size	L(mm)	H(mm)	D(mm)	Thickness(mm)
1/2"	114.3	76.2	12.7	1.65
3/4"	114.3	76.2	19.1	1.65
1"	76.2	68.1	25.4	1.65
1.25"	95.3	77.6	31.8	1.65
1.5"	114.3	87.2	38.1	1.65
2"	152.4	106.2	50.8	1.65
2.5"	190.5	125.3	63.5	1.65
3"	228.6	144.3	76.2	1.65
4"	304.8	182.4	101.6	2.1
5"	381.0	230.5	127.0	2.1
6"	457.2	268.6	152.4	2.8
