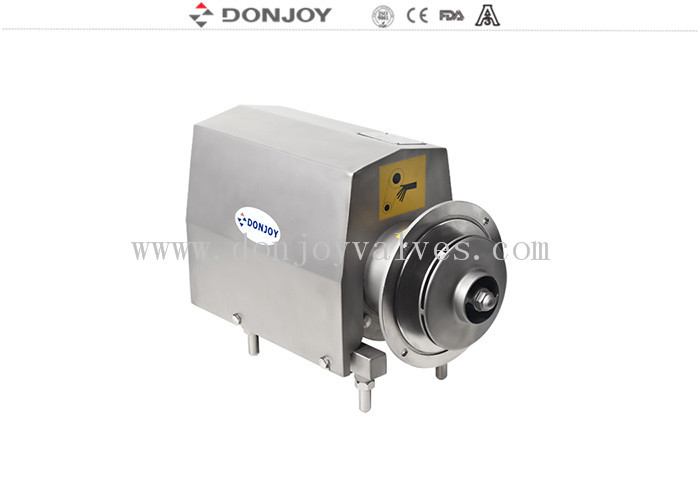

Name: BS - 6 High Purity Pumps centrifuagal pump (Close impeller) for fluid control
Brand: DONJOY TECHNOLOGY CO., LTD
SKU: BS - 6
Price: 7,499.60 USD
Availability: InStock

نام تجاری:	DONJOY
شماره مدل:	BS - 6
مقدار تولیدی:	Negotiation
قیمت:	قابل مذاکره
جزئیات بسته بندی:	carton box
شرایط پرداخت:	T/T, LC, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

CHINA

گواهی:

CE,3A,FDA

Item name:

Centrifugal pump of BS series

Type:

BS - 6

Flow Rate:

16-30T/H

Mechanical:

Flush Mechanical seal / Doulbe Seal

Inlet:

2" Thread / Clamp / Ferrule

Outlet:

1.5" Thread/Clamp/Ferrule

Motor:

ABB Motor

Low discharge on pump head:

For diaphragm valve / ball valve / butterfly valve

برجسته کردن:

self priming pump,lobe rotary pump

lobe rotary pump

توضیح محصول

BS-6, SS316L Sanitary centrifugal pump close impeller for food and beer trasfer for fluid control

Quick Detail

Trasfer Pump, BS pump, comestic pump, water pump

Description

Options

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5.Single Mechanical seal ( Standard)

6.Flush double mechnical seal(option)

Specifications

Product Name:	BS-6,SS316L Sanitary centrifugal pump Close impeller for food and beer trasfer
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM(Viton) and NBR
Max. Flow:	150 m3/h
Max. Speed:	3600 min-1
Max. Head:	70H(m)
Max. Working Pressure:	7 bar/99 PSI
Max. Working Temperature:	120 °C
Mechanical seal:	SIC/SiC/EPDM(Standard), C/SIC, TC/TC
Sealing type:	Flushed double mechanical seal/single mechanical seal(standard)
Motor power:	1.1kw, 1.5kw, 2.2kw...30kw
Voltage:	110V, 220V, 380V,630-690V
Motor:	ABB/domestic/SIEMENS
Motor type:	Optional
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	KS/BS
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Low discharge option :	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	For processing fluid

Applications

1. This pump is manufactured in stianless steel and with a shrouded motor.

2.Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.

Installation

options

Low discharge in the pump head: Diaphragm valve / ball valve / butterfly valve

Mechanical seal: SIC / SIC / EPDM

Connection way of Inlet & Outlet: thread, weld and flange

BS - 6 High Purity Pumps centrifuagal pump (Close impeller) for fluid control 0
