DONJOY 100 Mesh Stainless Steel Sanitary Strainer 2'' Filter Straight Type Quick Ship

Quick Detail

Sanitary filter/Strainer, Food grade Filter, Juice Filter

1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

2. Size:1"-4"

3. Screen:30-300meshes

4. Screen Hole:0.5mm-2mm

5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                     14℉ to 248℉

7. Max pressure: 10Bar,145PIS

8. Connection: Clamped, Welded, Thread

9.Standard: DIN,3A, RJT,SMS,ISO,IDF

10. Gasket: EPDM ( FDA 177.2600)

Specification

Operating Principles:

Features & Details:

[FOOD GRADE MATERIALS] - Made of 304 /316L stainless steel that is resistant to pollution and corrosion.
[HIGH FILTRATION CAPACITY] - The fine 100 mesh is designed to be porous enough to not block but still retain large solids.

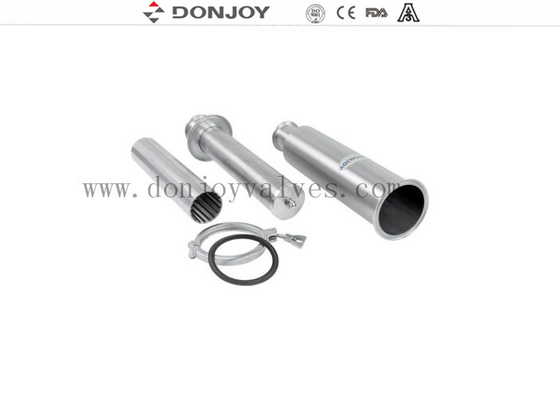

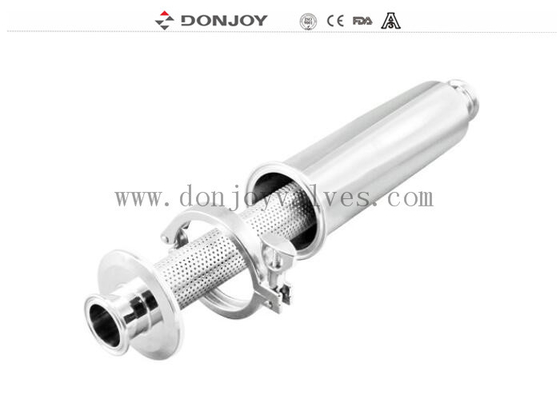

[COMPACT STRUCTURE] - Composed of housing, filter tube with 100 mesh filter screen, tri-clamp, and sanitary gasket. As the fluid flows through the inline hydraulic filter element, impurities are blocked and cleaned.
[EASY TO DISASSEMBLE AND CLEAN] - The screen can be removed from the filter outlet for quick cleaning.
[WIDE APPLICATION] - Suitable for food, pharmaceutical, sanitary and industrial applications

Stainless Steel Body

The housing, filter tube with 100 mesh filter screen, and tri-clamp are made of corrosion-resistant stainless steel, so it is durable. Both the inner and outer surfaces are polished to achieve a mirror finish, maintaining professionalism, and maintaining appearance

100 Mesh Stainless Steel Screen

The 100 mesh screen is resistant to high temperatures and corrosion. It's porous enough not to clog but still retain larger solids. When the fluid flows in the right direction, it will apply pressure to the screen, pushing it towards the interior perf screen that provides support and reducing pressure loss.

Mesh Selection Table

Metal Mesh

Perforate Plate

Draing of Filter

Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case

Shipping details:
Uaually within 7 days after receiving T/T down payment

Term of conditions: EXW PRICE, FOB, CIF....
