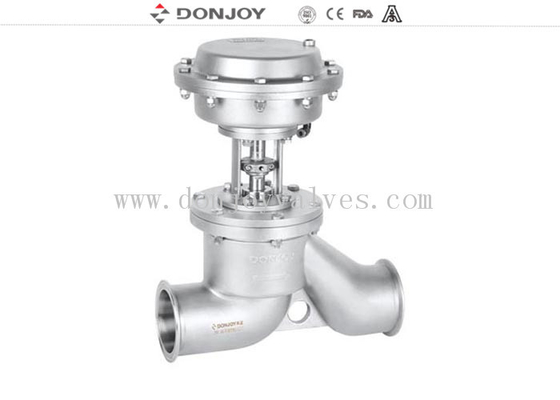

4" Sanitary Globe Valve With Stainless Steel Actuator 10bar For Water Treatment

نام تجاری:	DONJOY
شماره مدل:	NO.VJZ210Q2
مقدار تولیدی:	Negotiation
جزئیات بسته بندی:	carton box
شرایط پرداخت:	T/T, LC, Credit Card

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

Place of Origin:

CHINA

گواهی:

CE,3A,FDA

Product Name:

Globe valve

Size Of Panel:

2.5"-4"

Operation:

Manual

Material:

Stainless steel

Connection:

Tri clamp

Range of application:

food,washing,water treamtment .etc

برجسته کردن:

10bar Manual Globe Valve,4" Stainless Steel Actuator Globe Valve,FDA Water Treatment Globe Valve

4" Stainless Steel Actuator Globe Valve

FDA Water Treatment Globe Valve

توضیح محصول

4" Globe valve with Stainless steel actuator 10bar for water treatment

Detail:

Globe Valve

Connection: Clamped, Thread, Welding,Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Certificate: CE, 3A, FDA..

Operation Options for Globe Valve

1. Manual:Plastic handwheel, Stainless steel Wheel

2. Pnuematice:Plastic and stainless steel actuators, Diaphragm type actuator

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

specifications:

Product Name:	4" Globe valve with Stainless steel actuator 10bar for water treatment
Valve Body Material:	CF8M, SS316l
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	2.5"-6",DN65-DN150
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Actuator
Certificate:	FDA,CE,ISO

Applications:

Globe valve is a general switch in the automactic control system is widely used in wine, printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Drawing of valve

4" Sanitary Globe Valve With Stainless Steel Actuator 10bar For Water Treatment 0

Different operation of the globe valve

1. Pneumatic globe valve

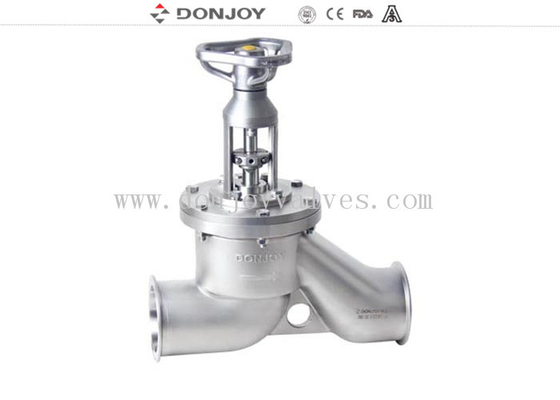

2.Manual globe valve

3. Pneuamtic globe valve+positioner

4.Stainless steel hand globe valve

5.Pneumatic globe valve+ Ctop

6.Stainless steel pneumatic globe valve

7.Pneuamtic globe valve+ valve position regulater

8. Pneumatic globe valve+psoitioenr sensor

4" Sanitary Globe Valve With Stainless Steel Actuator 10bar For Water Treatment 1

4" Sanitary Globe Valve With Stainless Steel Actuator 10bar For Water Treatment 2

4" Sanitary Globe Valve With Stainless Steel Actuator 10bar For Water Treatment 3
