شیرهای پروانه ای
>
Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12"

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12"

نام تجاری: DONJOY
شماره مدل: NO.VDF110Q1
مقدار تولیدی: Negotiation
قیمت: قابل مذاکره
جزئیات بسته بندی: carton box or wooden box
شرایط پرداخت: T/T, LC, Credit Card
اطلاعات دقیق
Place of Origin:
China
گواهی:
CE,3A,FDA
Product Name:
Pneumatic butterfly valve
Materials:
304/316L
Size:
DN10-DN300, 1/2"-12"
Operation:
Pneumatic
Connection:
Clamp ferrule
Struction:
Butterfly
Supply Ability:
500pcs per month
برجسته کردن:

stainless butterfly valves,pneumatic butterfly valve

,

pneumatic butterfly valve

توضیح محصول

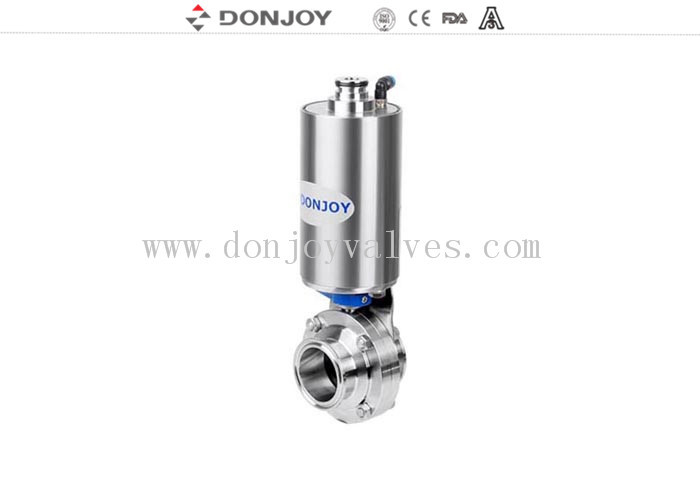

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12"



                                                 Technical Parameters

Steel material

Product wetted steel parts

AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material

inspection report

Other steel parts

AISI 304

Seal material

Standard

EPDM

All seal materials comply

with FDA 21CFR177.2600

Options

VMQ / Viton (FPM)

Pressure

Working pressure

≤145psi (10bar)

Supply pressure for air

actuator

70 ~ 116psi (5 ~ 8bar)

Temperature

Working temperature

EPDM: 14 ~ 248°F (-10 ~ 120°C)

VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature

150°C (302°F), Max. 20 min

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra 32 ~ 64µin (0.8 ~ 1.6µm)

Connection

End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Actuator

Normally Closed (NC) - Air to open and spring to close;

Normally Open (NO) - Air to close and spring to open;

Air to Air (AA) - Air to open, air to close

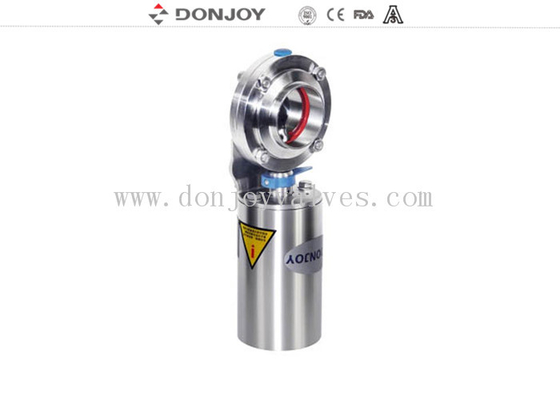

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 0

Data

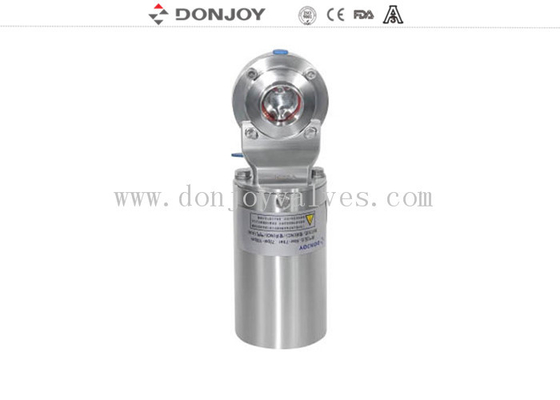

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 1

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 2

                                                                       Pneumatic actuator
Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 3 Size Recommend valve size
Butterfly valve Ball valve
70 DN10-DN50,0.5"-2" DN10-DN25,0.5"-1"
85 DN10-DN100,1"-4" DN10-DN40,0.5"-1.5"
114 DN100-DN125,4"-5" DN50-DN65,2"-2.5"
133 DN150-DN200,6"-8" DN80-DN100,3"-4"
168 DN200-DN300,8"-12" DN100,4"



Application:
pneumatic type sanitary butterfly valve with butt-welded / butt-welded ends, which is widely used in process piping systems for isolation and control. AV-1PW butterfly valve operates automatically.


Specification:
Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150,DN200, DN250, DN300)
Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".
Operation: SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from.
Air supply pressure: 70-116psi (5-8bar)
Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
End connections: butt-welded / butt-welded.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.


Options:
Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.The seat and gasket can be EPDM, VMQ (Silicone) or Viton (FPM), all complying with FDA 21CFR177.2600.End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.


Actuators to reach automatic operation:
pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
NC operated: normally closed (fail closed)---air to open, spring to close
NO operated: normally open (fail open)---air to close, spring to open
AA operated: double-acting---air to open, air to close valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 4 Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 5 Pneumatic Operation Sanitary Butterfly Valves with Clamped Ends Silicon seal 12" 6

Air Supply Port

AA Actuator

1”-4”

both two ports are G1/8

>4”

One port is G1/4, the other is G1/8

NC Actuator

1”-4”

One port is G1/8

>4”

One port is G1/4

NO Actuator

1”-4”

One port is G1/8

>4”

One port is G1/4
